Axon' Nano-D连接器

  • 2024-01-23
除了标准系列的Micro-D连接器和组件外，Axon'还能够基于高度可靠的麻花针端子技术提供更小的矩形和圆形Nano连接器和组件。它们符合MIL-DTL-32139的所有要求。这种解决方案非常适合航空航天、军事、工业、医疗或海上应用，这些应用需要极度小型化、节省空间或重量以及可靠性。
Axon'的Nano圆形连接器系列为电子系统带来了巨大的重量和空间优势。如果需要防护等级达到IP67或IP68，也可提供防水设计。
In addition to the standard range of Micro-D connectors and assemblies, Axon' is able to offer the even smaller rectangular and circular Nano connectors and assemblies based on highly reliable Twist Pin contact technology. They meet all the requirements of MIL-DTL-32139. Such solutions are ideal for applications including aerospace, military, industrial, medical or offshore which require extreme miniaturization, space or weight saving and reliability.
Axon's range of Nano circular connectors delivers substantial weight and space gains on electronic systems. Waterproof designs are also available if required with protection levels to IP67 or IP68.




1、不同的配置

Different Configurations

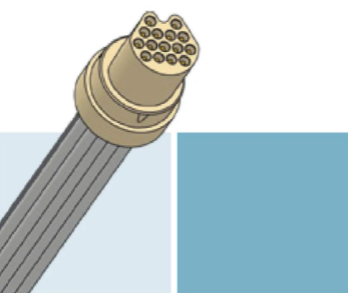

-用于电线的Nano圆形连接器（带线连接器组件）。
-用于PCB的Nano圆形连接器。
-直接内置在线束中的Nano圆形连接器。
- Nano circular connectors for wires (pigtail assemblies).
- Nano circular connectors for PCBs.
- Nano circular connectors built directly into harnesses.




2、Axon'的解决方案

Axon' Solutions

1、特性

-每排端子之间的间距为0.635mm。
-行间距0.635mm。
-通道（针数）数量：15、25和37。
-高可靠性麻花针端子。
-带固定螺母的金属外壳。
-无外壳和螺丝螺母的带线塑料连接器解决方案（连接器的大小大致等于线束的直径）。
-提供螺纹解决方案。
Characteristics
- 0.635mm spacing (pitch) between contacts in each row.
- 0.635mm spacing between rows.
- Number of ways: 15, 25 and 37.
- High reliability Twist Pin contacts.
- Metal shell with captive hardware.
- Plastic pigtail solution without shells and hardware (size of the connector roughly equal to the diameter of the bundle).
- Threaded Solution available.





3、定制设计

Custom Designed

定制设计的连接器和组件：您的特殊产品是我们的标准。

为了满足最苛刻的要求，Axon'能够提供定制的解决方案，包括：
-大电流传输。
-优化、节省空间的布线解决方案。
-优化大规模生产过程的解决方案。
-EMC优化了设计。
-促进机械集成的解决方案：
-特殊硬件、小型化、超柔性电线和电缆。
-定制外壳设计，以满足特定要求。
-定制材料和表面处理。

Custom designed connectors & assemblies: your special is our standard.

To meet the most severe requirements, Axon'has been able to offer customised solutions including:

- High current transmission.

- Optimised, space saving wiring solutions.

- Solutions to optimise the process for mass manufacture.

- EMC optimised designs.

- Solutions to facilitate mechanical integration:

- Special hardware, miniaturisation, super flexible wires and cables.

- Custom shell designs to suit specific requirements.

- Custom materials and finishes.




》联系我们 Contact us

电话Tel：+86-0757-28387200

邮箱E-mail：sales@axon-interconnect.com

网址Website：http://www.axon-interconnect.com
