Micro-D连接器满足您的需求

  • 2024-01-16
除了矩形和圆形Micro-D连接器的标准系列外，Axon'还可以帮助设计任何特殊版本或自定义设计的Micro-D连接器，以满足特定要求。定制设计的针数、高密度连接器、EMI和面板安装连接器、带滤波的Micro-D连接器、防水和密封连接器、非磁性连接器、包覆注塑成型解决方案是Axon'能够满足的要求。从简单的带线连接器到为最具挑战性的环境设计的复杂多分支线束，Axon'将为您提供所需的最佳解决方案。
In addition to the standard range of rectangular and circular Micro-D connectors, Axon' can assist in designing any special version or custom design to meet specific requirements. Custom design number of ways, high density connectors, EMI and panel mount connectors, filtered micro D connectors, waterproof and hermetic connectors, non magnetic connectors, overmoulding solutions are requirements that Axon' can meet. From pigtails to complex multi-branched harnesses designed for the most challenging of environments, Axon' Cable will provide you with the best solution you need.




1、优点

Advantages

Micro-D系统内部设计、制造和测试的全面集成，包括：
麻花针端子、外壳、绝缘体和界面密封。
定制设计的导线、电线和电缆。
复杂的组装过程，包括优化的EMC屏蔽、分支编织和包覆注塑成型。
Axon'在组装各种形式的Micro-D连接器方面拥有超过25年的专业知识：PCB、带线连接器、转接头、条带、焊杯型连接器、电缆组件和线束。

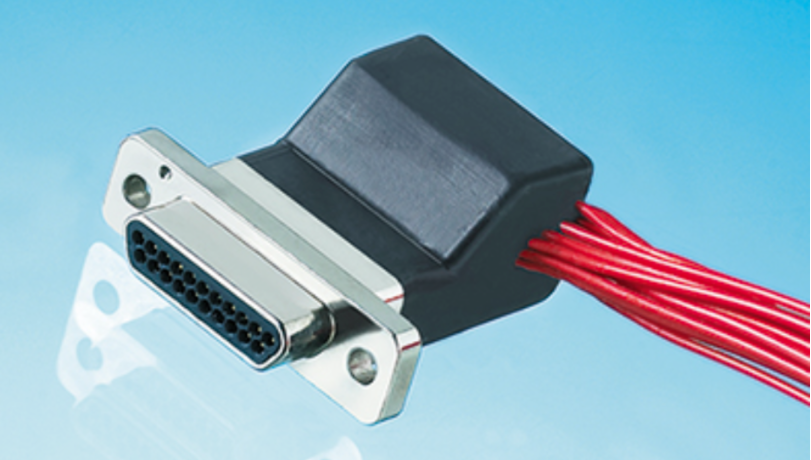

模具设计、成型和包覆注塑成型方面的专业知识。
EMI防护专业知识。
Full integration in-house of the design, manufacture and testing of the Micro-D system including:
Twist pins, shells, inserts and interfacial seals.
Custom design conductors, wires and cables.
Complex assembly processes including optimised EMC shielding, branch braiding and overmoulding.
Over 25 year expertise in assembling micro D connectors in all their forms: PCB, pigtails, savers, strips, solder cup, cable assemblies and wire harnesses.
Expertise in mould design, moulding and overmoulding.
Expertise in EMI protection.




2、范围概述

Range overview

我们定制设计的连接器的核心是高度可靠的麻花针端子。

特殊外壳材料和表面处理。

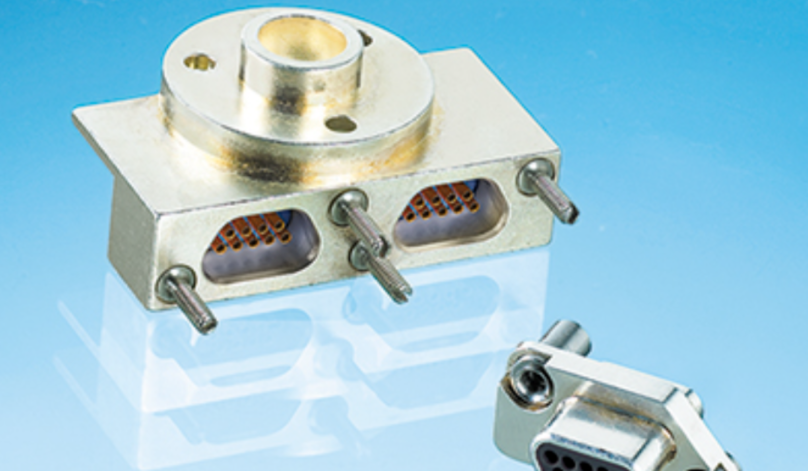

矩形连接器。
圆形连接器。
特定的端子位置排布。

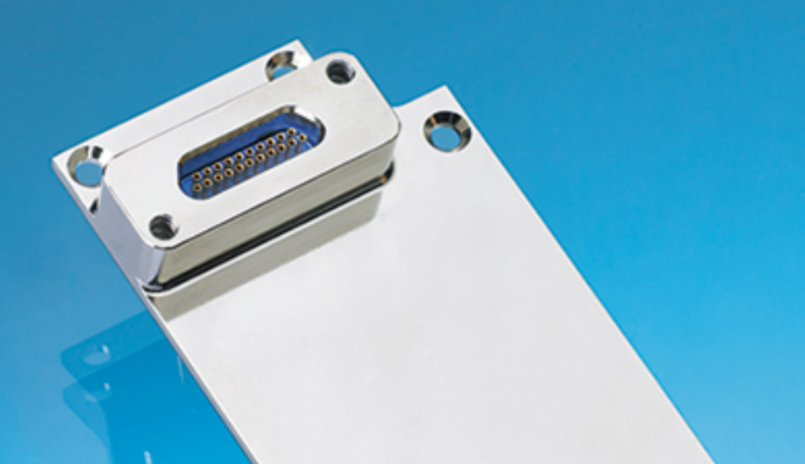

定制设计的EMI和面板安装连接器。
带滤波的Micro-D连接器。
防水密封连接器。
非磁性连接器。
高密度连接器：Nano-D端子安装到Micro-D外壳中。

混合连接器：通过非常小的连接器安装电源和射频信号端子。

PCB连接器。

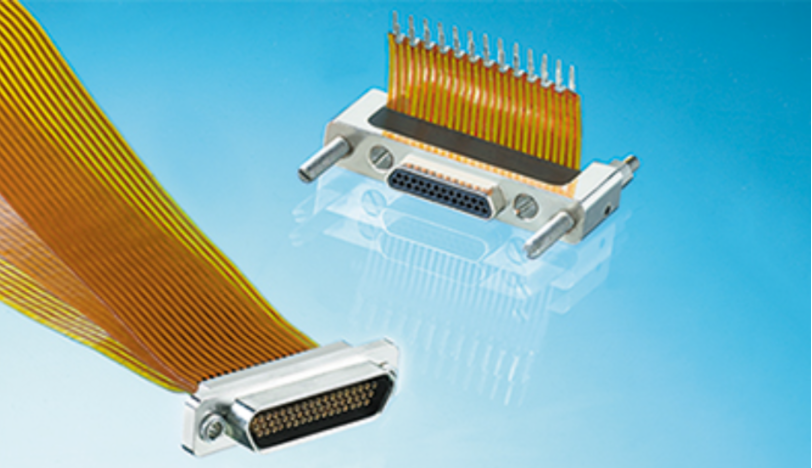

带线连接器。

多分支线束。

The heart of our custom design connector is the highly reliable twist pin contact.
Special shell materials and finishes.
Rectangular connectors.
Circular connectors.
Specific contact arrangements.
Custom designed EMI and panel mount connectors.
Filtered Micro-D connectors.
Waterproof and hermetic connectors.
Non-magnetic connectors.
High density connectors: nano D contacts in a micro D shell.
Combo connectors: to route power and RF signals through very small connectors.
PCB connectors.
Pigtails.
Multi-branch wire harnesses.



3、应用

Applications

雷达系统。
导航系统。
航空电子设备。
导弹和反制装置。
电光材料。
军用GPS系统。
旋转连接装置。
海上作业，包括井下钻井工具。
天然气和石油系统。
医疗器械。
研究中心。
卫星电子。
航天电子。
高数据速率系统。

Radar systems.
Navigation systems.
Avionics equipment.
Missiles and counter measures.
Electro-optics.
Military GPS systems.
Twist capsules.
Offshore including down-hole drilling tools.
Gas and oil systems.
Medical devices.
Research centers.
Satellite electronics.
Space electronics.
High data rate systems.
