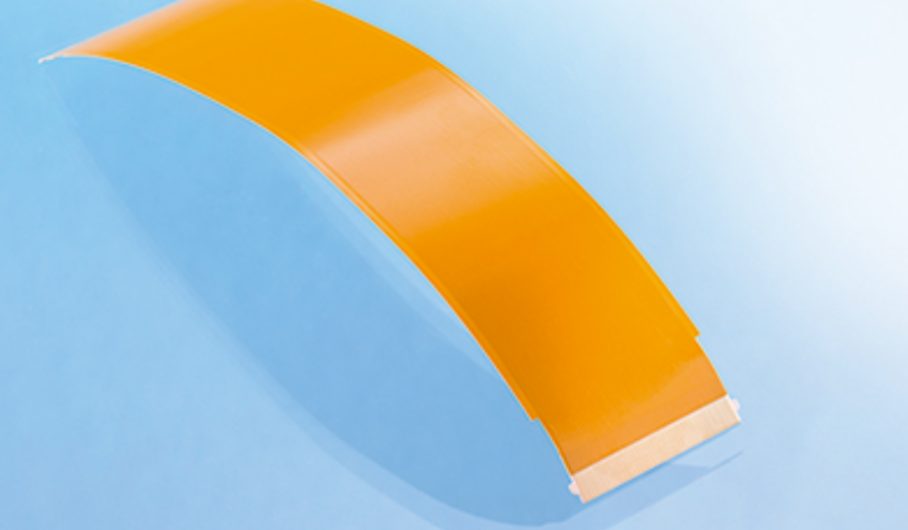

安装简单快捷：节省时间，降低成本。

与ZIF/LIF连接器兼容。

卓越的灵活性和弯曲寿命：超柔性版本（弯曲半径为10 mm）超过70000000次循环。

可以提供在剥线端有精细镀金层的扁平电缆，以确保不存在锡须。

铝带EMI屏蔽。

Extremely small dimensions: low profile, narrow width, fine pitch.

Easy and fast installation: time saving and cost reduction.

Compatible with ZIF/LIF connectors.

Excellent flexibility and flex life: over 70000000 cycles for the ultra-flexible version (10 mm bend radius).

Flat cables with a fine gold coating on the stripped end can be offered to guarantee the absence of tin whiskers.

EMI shielding with aluminium tape.

2、结构

Construction

符合RoHS标准的扁平导体：裸铜、锡合金镀铜、镀金铜。

绝缘：压合聚酯或聚酰亚胺胶带。

0.30 mm间距。

0.50、1.00、1.25 mm间距：100微米导体、50和35微米导体。

不同类型的剥线端和补强板，取决于连接类型：可拆卸连接（连接器/连接器）、焊接连接（焊接/焊接）或混合连接（焊接/连接器）。

扁平柔性电缆发货时，可采用标准UL印刷，也可采用特殊标识。

屏蔽版本：Axon'能够将一个或多个导体接地到屏蔽上。

定制设计的FFC扁平柔性电缆，由折叠、切口、屏蔽、冲孔、切割、标记等制成。

订购很容易：只需发送您自己的规格或使用FFC Cad设计工具绘制即可。

RoHS compliant flat conductors: bare copper, tin alloy plated copper, gold plated copper.

Insulation: laminated polyester or polyimide tapes.

0.30 mm pitch.

0.50, 1.00, 1.25 mm pitch : 100 micron conductor, 50 and 35 micron conductor versions.

Different types of stripping and reinforcement tapes, dependent on the connection type: removable connection (connector/connector), solder connection (solder/solder) or mixed connection (solder/connector).

Flat flex cables can be delivered with a standard UL printing or with a special marking.

Shielded versions: Axon' is able to ground one or several conductors to the shield.

Custom designed FFC-Flat Flexible cables made with folds, notches, shields, punching, slitting, marking etc.

Ordering is easy: just send your own specification or draw it with FFC-Cad designing tool.

3、应用

Applications

IT设备：笔记本电脑、扫描仪、打印机。

消费类电子产品：CD和DVD播放器、高保真系统、解码器和卫星接收器。

汽车工业：汽车收音机、全球定位系统、开关旋转连接器、车顶内衬、门板。

电信。

家用设备：餐盘、冰箱、洗碗机。

军用电子。

工业：机器人、自动化系统。

医疗显示器。

IT equipment: notebooks, scanners, printers.

Consumer electronics: CD and DVD players, hi-fi systems, decoders and satellite receivers.

Automotive industry: car radios, GPS systems, switch rotary connectors, headliners, door panels.

Telecommunications.

Household equipment: cooking plates, refrigerators, dishwashers.

Military electronics.

Industry: robots, automation systems.

Medical displays.
