//FDC-平板显示器用扁平电缆组件

FDC- Flat Cable Assemblies for Flat Displays

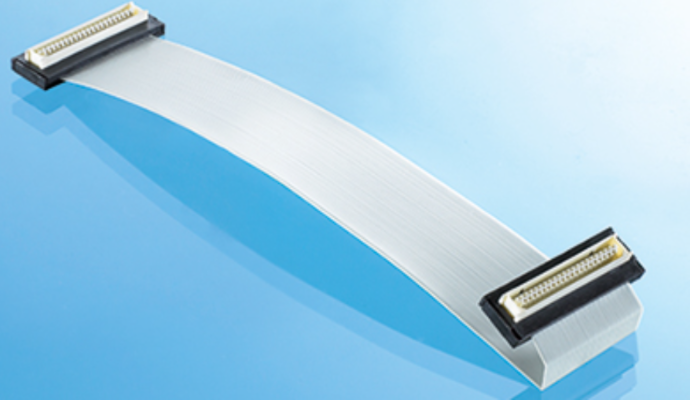

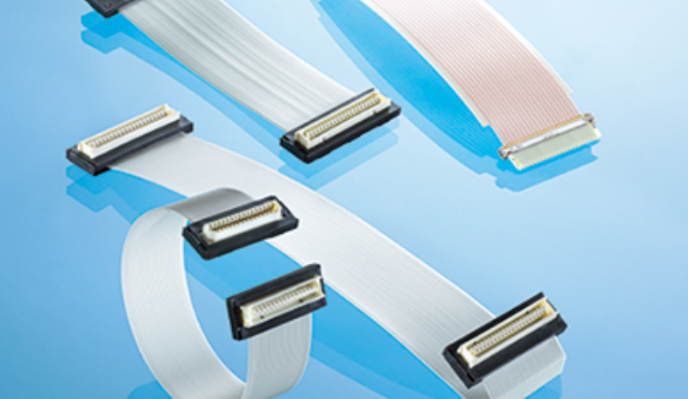

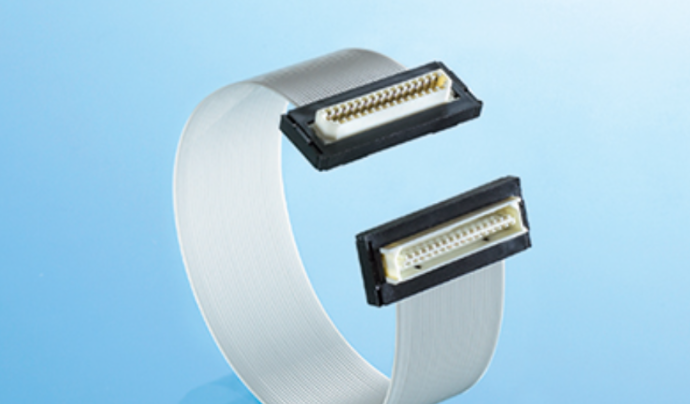

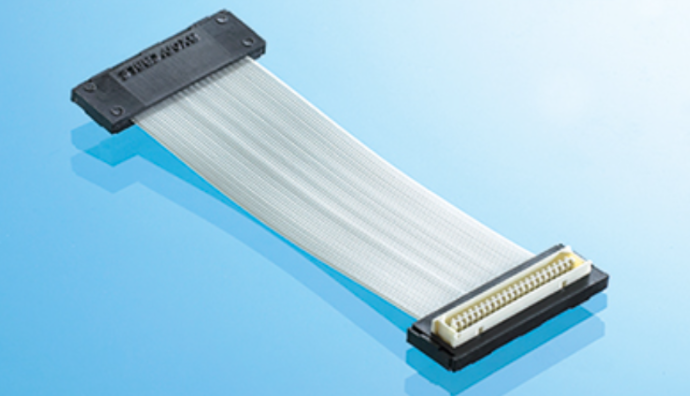

FDC平板显示器连接专为板到显示器互连而设计，由标准FFC扁平柔性电缆和连接器组成，如一端或两端的DF-9、DF-19、FI-SE、FI-X。FDC扁平电缆组件有0.50 mm、1.00 mm和1.25 mm的间距，可用于插入柔性连接。它们是专门为小型显示器设计的。Axon'开发了两种符合LVDS协议和V-By-One®HS的扁平电缆组件，用于HD显示器和3D显示器。

Designed for board to display interconnections, FDC-Flat Display Connections consist of standard FFC-Flat Flexible Cables and connectors such as DF-9, DF-19, FI-SE, FI-X at one or both ends. Available in 0.50 mm, 1.00 mm and 1.25 mm pitches, FDC-flat cable assemblies are ready-to-plug flexible connections. They have specially been designed for small displays. Axon' has developed 2 ranges of flat cable assemblies compliant with the LVDS protocol and V-By-One® HS for HD displays and 3 D displays.




1、优点

Advantages

节省空间：小外形，窄宽度设计。

连接可靠。

出色的弹性寿命和灵活性。

预插入连接。

可折叠，便于集成安装。

FFC长度符合要求，提供标准化长度以加快服务。

简单锁定机制（DF-9）。

屏蔽连接器（DF19、FI-X）。

Space saving: low profile, narrow width design.

Reliable connection.

Excellent flex life and flexibility.

Ready-to-plug connection.

Foldable for easy integration mounting.

FFC lengths to requirements but standardized lengths offered for quicker service.

Simple locking mechanism (DF-9).

Shielded connectors (DF19, FI-X).




2、结构

Construction

扁平柔性电缆：间距分别为0.50、1.00和1.25 mm。

连接器：Hirose DF-9、DF-19 JAE FI。

一端或两端用FI-X连接器端接。

Flat flexible cables: 0.50, 1.00 and 1.25 mm pitch.

Connectors: Hirose DF-9, DF-19 JAE FI.

Terminated with FI-X connectors at one or both ends.




3、应用

Applications

板与平板显示器的互连。

VESA、FPDI-1接口。

主板与大型高清电视显示器（FDC100®）的互连。

高速数据传输。

Interconnection of board to flat panel display.

VESA, FPDI-1 interface.

Interconnection of the motherboard to the large HD television displays (FDC100®).

High speed data transmission.
