Axon' 飞行器吊装探测电缆

  • 2023-04-14
//飞行器吊装探测电缆


The aircraft hoisted the detection cable

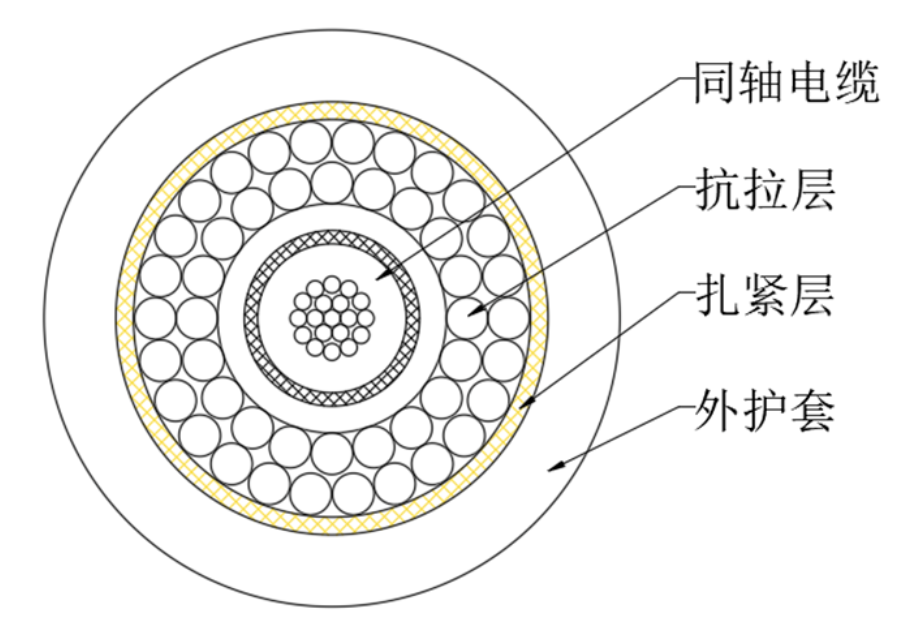

亿讯开发了用于飞行器吊装探测用的电缆,通常用于无人机测绘,海洋声纳探测,以及矿物资源勘查。这种电缆的核心是中心的同轴电缆和抗拉层结构。同轴电缆用于信号传输,而抗拉层提供了拉力保护。

Axon' has developed cables for aerial lifting and exploration, commonly used in drone mapping, ocean sonar and mineral exploration. The key of this cable is the central coaxial cable and tensile layer structure. Coaxial cables are used for signal transmission, while tensile layers provide tension protection.




当前,亿讯已经制造了型号为SC-KK2219STR1-TS16的吊装探测电缆,它的特性阻抗为50±3Ω,在200Hz下的衰减为0.36dB/m,抗拉强度超过16kN,弯曲寿命达到了6000次。

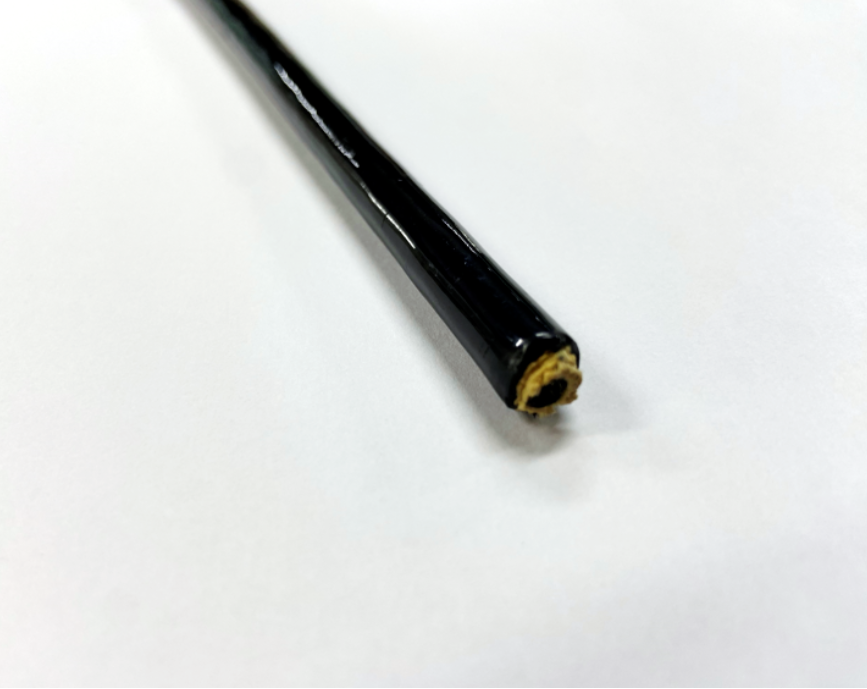

Currently, Axon’s has manufactured the SC-KK2219STR1-TS16 hoisting probe cable, which has a characteristic impedance of 50±3Ω, a attenuation of 0.36dB/m at 200Hz, a tensile strength of over 16kN, and a bending life of 6000 times.
