作为Axon'集团的一部分，Axon' Mechatronics集成了引脚针和端子的制造，以提供定制设计的解决方案。

As part of the Axon' group, Axon' Mechatronics has integrated the manufacture of pins and contacts to provide custom-designed solutions.

//鱼眼端子

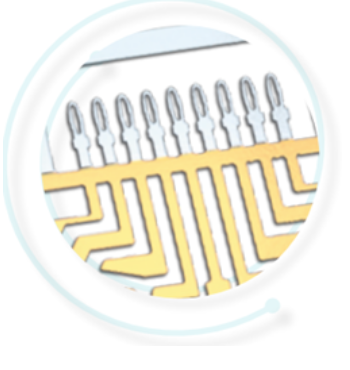

Eye of the Needle

作为一种连接，Press-fit鱼眼端子技术为焊接提供了一种有利的替代方案。Press-fit鱼眼端子是一种冲压端子，设计用于插入印刷电路板（PCB）中的电镀通（PTH），从而在无需焊接的情况下建立物理和电子连接。EON压接符合IEC 60352-5标准，但Axon' Mechatronics Press-fit鱼眼端子的性能超过了标准要求，尤其是在温度和环境测试方面。

As a connection, Press-fit technology offers a favorable alternative to soldering. A Press-fit is a stamped terminal designed to be inserted into a plated-through hole (PTH) in a printed circuit board(PCB), in such a way that an electro-mechanical connection is established without soldering. EON Press-fit is qualified to the IEC  60352-5 standard but performances of Axon' Mechatronics press-fit terminals exceed the standard requirements, especially in terms of temperatures and environmental tests.

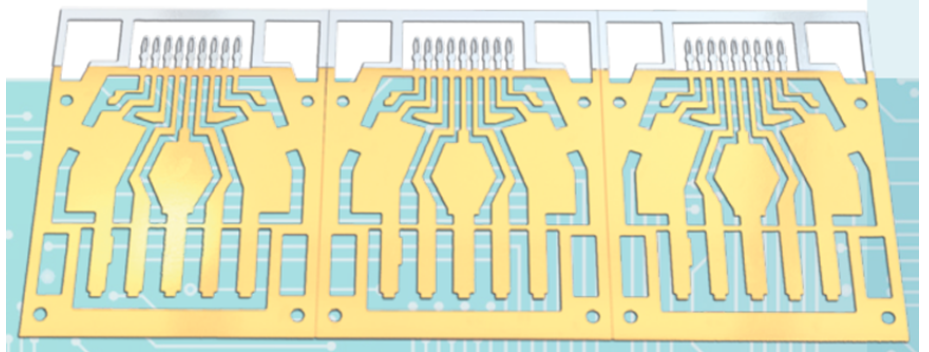

//冲压端子金属件，带有鱼眼压入区，便于插入

Stamped leadframes with pressfit zones for easy insertion

Press-fit鱼眼端子：要插入印刷电路板的冲压端子。

避免了额外的焊接过程，以节省成本并提高生产率。

避免了第二回流阶段的热应力。

插入后提供高的机械保持力和良好的电接触。

材料：

-CuSn6P–连续温度：125°C，

-CuNiSi–持续温度：170°C，

厚度：0.6、0.8和1.0 mm。

可以包装在托盘中：易于处理，实现自动化处理。

Pressfit terminals: stamped terminals to be inserted into the PCB.

Avoids additional soldering processes to save cost and increase productivity.

Avoids thermal stress of a second reflow phase.

Delivers high mechanical retention and excellent electrical contact after insertion.

Materials:

- CuSn6P – continuous temperature: 125°C,

- CuNiSi – continuous temperature: 170°C,

- thicknesses : 0.6, 0.8 and 1.0 mm.

Can be packaged in alveolar trays: easy to handle for automated process.

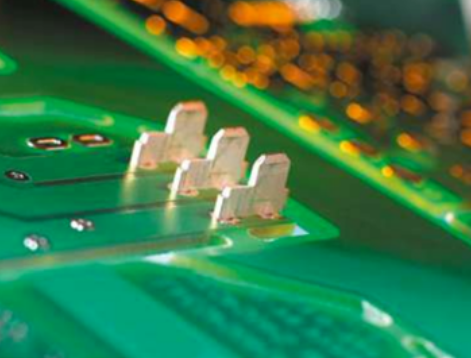

//PCBA用接线片、引脚针和SMD端子

TABS, PINS & SMD TERMINALS FOR PCBA

Axon' Mechatronics根据客户规范设计和制造卷轴包装或散装包装的冲压端子。

Axon' Mechatronics designs and manufactures reeled or loose stamped terminals as per customer specifications.

//散装或卷装零件

Bulk or reeled parts

线形插针

• 标准和定制设计的线形插针端子。

电致伸缩方面的专业知识：这项巧妙的技术允许制造具有光滑、球形尖端的触点，而没有在插入时可能造成损坏的锋利边缘。无金属碎屑。

• 插针端子冲压以制造截头棱锥形尖端。

• 各种复杂形状的直针或带角度的插针。

• 插针端子材料：铜合金、磷青铜、黄铜。

• 表面处理可以选择镀或全镀：金、银、镍、锡

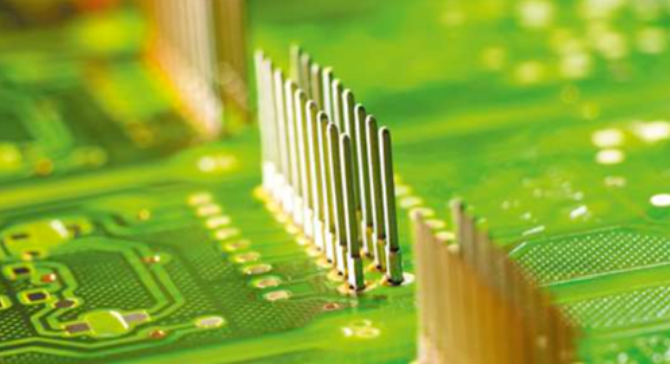

WIRE PINS

•  Standard and custom-designed wire pins.

Expertise in electrostriction: this clever technology allows for the manufacture of contacts with smooth, spherical tips with none of the sharp edges that can cause damage on insertion. No metal chips.

•  Contact stamping to manufacture truncated pyramid-form tips.

•  Straight or angled contacts from a variety of complex shapes.

•  Contact material: copper alloy, phosphorous bronze, brass.

•  Selective or full contact plating: gold, silver, nickel, tin

/单行、双排、直形或斜形

Single row, double row, straight or angled shapes

插针接头

• 用于板到板和板到电缆互连的标准或定制设计的互连插针接头。

• 间距：2.54 mm（0.100“）或5.08 mm（0.200”）。

• 端子材料：铜合金、磷青铜或黄铜，全镀层或选择镀层：金、银、镍、锡。灵活的流程，适用于小批量和大型生产量。

• 端子制造、绝缘材料注塑的纵向整合。

• 设计用于大规模生产的自动插入机。

• 设计用于插入选择性电镀端子的机器。

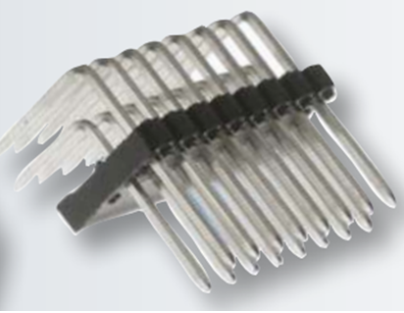

PIN HEADERS

• Standard or custom-designed interconnect pin headers for board-to-board and board-to-cable interconnects.

• Pitches: 2.54 mm (0.100") or 5.08 mm (0.200").

• Contact material: copper alloy, phosphorous bronze or brass with full or selective plating: gold, silver, nickel, tin. Flexible process for small and large scale production volumes.

• Vertical integration of contact manufacturing, injection of insulating material.

• Automatic insertion machines designed for large scale production volumes.

• Machines designed to insert contacts with selective plating.
