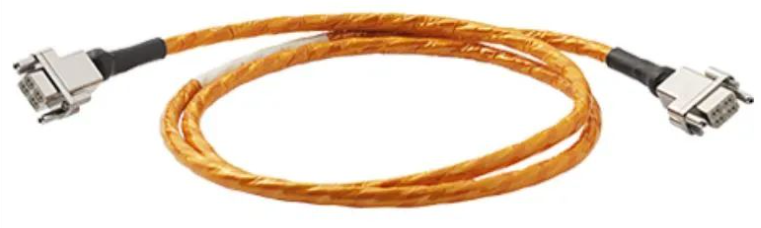

随着数据速率和EMI需求的增加，Axon' 推出了MicroMach®，这是一种阻抗匹配的高速连接器，最初是为优化SpaceWire性能而开发的，但也可用于其他协议，如SpaceFibre、Wizardlink和TT以太网。
As data rates and EMI requirements increase, Axon' introduces MicroMach®, an impedance matched high speed connector, initially developed for optimized SpaceWire performance, but which can also be used for other protocols such as SpaceFibre, Wizardlink, & TT-Ethernet.
//更高的性能
Higher performance
>紧凑，
>匹配100? 阻抗对：信号的良好连续性，
>路间串扰低，
>采用强健的EMC设计，为电缆和设备提供报保护
>数据速率远远超过典型的SpaceWire性能-高达3Gb/s。
> Compact,
> Matched 100 ? impedance pairs: excellent continuity of signal,
> Low crosstalk between ways,
> Enjoys a robust EMC design, providing protection for both the cable and the
equipment,
> Is capable of data rates well in excess of typical SpaceWire performance - up to 3
Gb/s.
//MICROMACH®：增强的高速性能
MICROMACH®: ENHANCED HIGH SPEED PERFORMANCE
随着数据速率和EMI要求的增加，Micro-D变得更加有限。因此，Axon'开发了MicroMach®，一种新的、优化的高数据速率连接器。凭借Axon'极快的AxoMach®系列和久经考验的Micro-D高可靠性Twist-Pin接触系统，这款新型连接器继承了Axon'的两大优势：
>尺寸非常接近9芯Micro-D，因此设备所需的额外引脚空间占用面积很少。
>具有匹配的100欧姆阻抗对，因此提供了极好的信号连续性。
>采用强健的EMC设计，为电缆和设备提供保护。
>其数据速率远远超过典型的SpaceWire性能–高达3Gb/s。
As data rates and EMI requirements increase, the Micro-D becomes more limited. Axon' has therefore developed MicroMach®, a new, optimized high data rate connector. Drawing on the twin heritages of Axon’s blisteringly fast AxoMach® range and the tried and tested Micro-D with its high-reliability, Twist Pin contact system, this new connector:
>Is very close in size to the 9 way Micro-D, so little additional footprint required on equipments.
>Has matched 100 ohm impedance pairs, so provides excellent continuity of signal.
>Enjoys a robust EMC design, providing protection for both the cable and the equipment.
>Is capable of data rates well in excess of typical SpaceWire performance – up to 3Gb/s.
EPPL2列出的MicroMach®系列包括四个串联连接器/线束变体（ESCC3409/002）、三个PCB变体（ESCC4401/095）和一个连接器转换器（ESCC3401/096）。该连接器与Axon'的ESCC3902/004低重量SpaceWire电缆相结合，可提供无与伦比的SpaceWire性能与质量比。

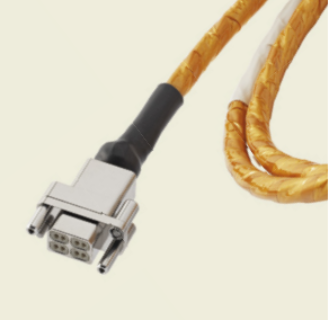

The EPPL2-listed MicroMach® range includes four in-line connector/harness variants, (ESCC3409/002) three PCB variants (ESCC3401/095) and a connector saver (ESCC3401/096). Combined with Axon’s ESCC3902/004 Low Mass SpaceWire cable, this connector provides an unbeatable SpaceWire performance to mass ratio.
MicroMach®连接器具有4 x 100欧姆匹配的阻抗腔，在内部和外部屏蔽上都有出色的EMC屏蔽，因此同样适用于许多其他高速协议，例如以太网，它可以轻松地超过CAT6a的要求。
With its 4 x 100 ohm matched impedance cavities, and excellent EMC screening on both inner and outer shields, the MicroMach® connector is equally suited to many other high speed protocols, such as Ethernet, where it comfortably exceeds CAT6a requirements.
