信号传输电缆: 同轴电缆

  • 2022-06-29

//标准型同轴电缆

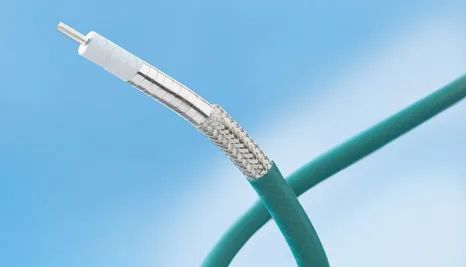

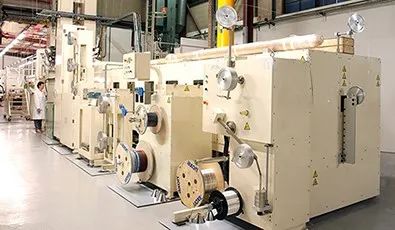

Standard coaxial cables


同轴电缆是用于信号传输的电缆，主要用于有线电视线路、数字通信、设备间信号传输等场景，其核心指标为特性阻抗和衰减，并且许多国家编制了对应的产品标准，规定同轴电缆的材料、结构和指标。亿讯经过了多年的发展，具备了满足全球市场同轴电缆的生产能力。例如美国标准MIL-C-17的RG系列以及法国标准NF-C-93550的KX系列等欧美地区标准的同轴电缆。这些同轴电缆具有低衰减、高阻抗的优点，已经在VALEO、IHEP、Corrosion Radar Ltd.、Semitronix等国内外客户得到了广泛的应用。

Coaxial cable is used for signal transmission, mainly used in cable TV lines, digital communication, signal transmission between equipment and other scenarios, its core indicators are characteristic impedance and attenuation, and many countries have formulated the corresponding product standards, specifying the material, structure and indicators of coaxial cable. After years of development, Axon' has the ability to produce coaxial cable to meet the global market. For example, American standard MIL-C-17 RG series and French standard NF-C-93550 KX series and other European and American standard coaxial cable. These coaxial cables have the advantages of low attenuation and high impedance, and have been widely used by domestic and foreign customers such as VALEO, IHEP, Corrosion Radar Ltd.,Semitronix.




//特种同轴电缆

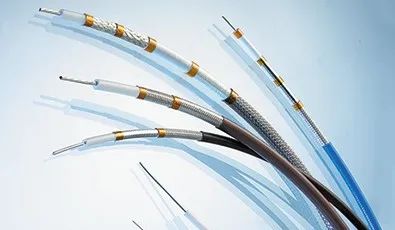

Special coaxial cables

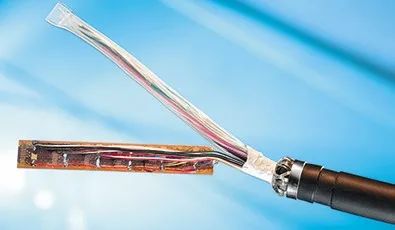

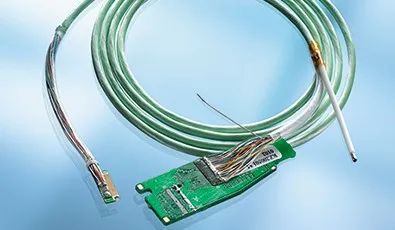

对于应用在航空航天、军事设备、医疗设备等领域的同轴电缆，对材料选型、结构设计和制造工艺上提出了更苛刻的要求。为了满足市场需求，亿讯开发了低噪音、轻重量，耐高温、耐腐蚀、高阻燃的同轴电缆。例如应用在医疗成像、超声或内窥镜的微型同轴电缆，外径仅有0.2mm，具有高柔软性、低介电强度、可直接焊接在PCB板的优点。

For coaxial cables used in aerospace, military equipment, medical equipment and other fields, the material, structure design and manufacturing process of more stringent requirements. In order to meet the market demand, Axon' have developed the low noise, light weight, high temperature resistance, corrosion resistance, high flame retardant coaxial cable. For example, the micro coaxial cable used in medical imaging, ultrasound or endoscope has the advantages of high flexibility, low dielectricstrength and direct welding on PCB board with an outer diameter of only 0.2mm.




//轻型同轴电缆

lightweight coaxial cables


亿讯开发了用于飞机和直升机的轻型同轴电缆。通过采用铝导体和铝丝编织屏蔽，重量较常规同轴电缆降低了30%。本款产品有着优越的电气性能和机械性能，特性阻抗为50Ω，在1GHz下的衰减为0.15dB/m，能适配6GHz和18GHz的组件,使用温度范围为-55~+180℃，抗压特性为100daN/100mm。


Axon' has developed lightweight coaxial cables for aircrafts and helicopters. By using aluminum conductor and aluminum wire braided shield, the weight is reduced by 30% compared to conventional coaxial cable. This product has excellent electrical and mechanical properties, characteristic impedance of 50Ω, attenuation of 0.15dB/m at 1GHz, can be adapted to 6GHz and 18GHz components, the use of temperature range of -55~+180℃, compression characteristics of 100daN/100mm.
