1、//平板显示器高速数据传输连接线：LVDS

Flat display connections for high speed transmission: LVDS

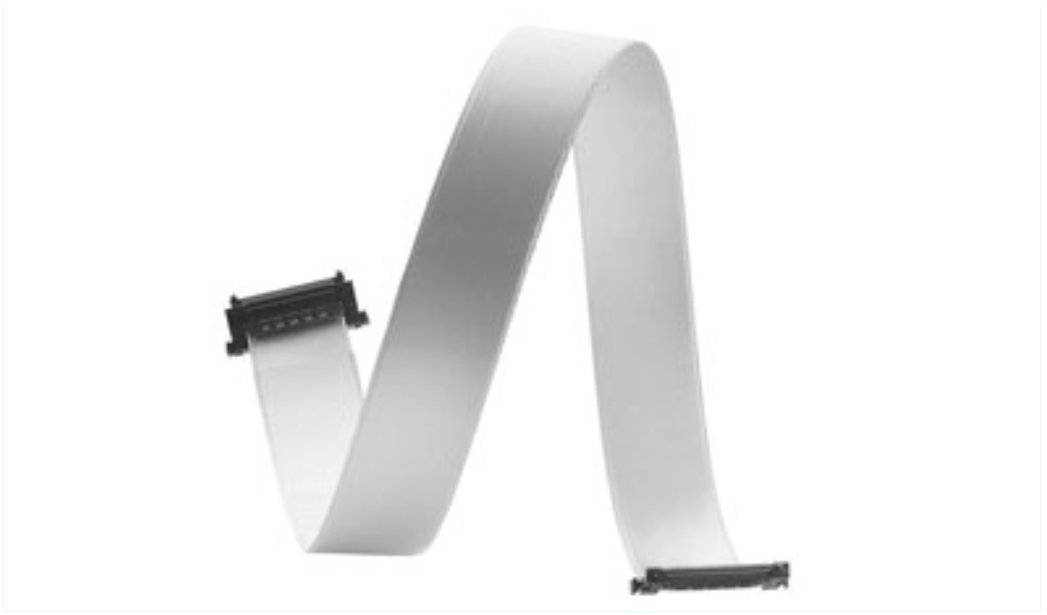

FDC100®平板显示器连接线由阻抗100Ω的柔性扁平电缆制成。它们适用于视频信号的高速数据传输。高数据速率扁平电缆符合包括LVDS在内的高速协议。无论是全高清显示屏，分辨率更高的大屏幕，LED和3D显示屏，还是增加颜色深度，要求高速传输信号，Axon '都有对应的解决方案，以支持当前所有的市场趋势。FDC100® Flat Display Connections are made with 100Ωflat flex cables. They are suited for high speed data transmission of video signals. High data rate flat cables are compliant with high speed protocol including LVDS. Full HD displays, largerscreens with higher resolutions, LED and 3D displays, increase of colour depth, high speed of signal transmission, Axon’ has a solution to support all the current market trends.

//优势

Advantage

-完全符合LVDS协议

-卓越的高速传输能力: 3 Gbps

-体积小

-高度耐弯曲性

-柔性的设计易于连接安装

-可折叠，便于连接安装

-Fully compliant with the LVDS protocol

-Excellent high speed transmission: 3 Gbps

-Small dimensions

-High flexibility

-Flexible versions are available for easierintegration

-Foldable for easy integration mounting

//结构:

Construction

-带屏蔽的扁平电缆或者是组装有AXON’创新设计的连接器的带屏蔽扁平电缆

-21、31、41和51针的0.50mm间距的屏蔽扁平电缆，窗口导体采用镀金处理，与板端FI-R连接器兼容插接

-适用于ZIF连接器

-可根据要求提供适用于各种带有锁定功能的连接器所对应匹配的特定形状的扁平电缆

-Made with a shielded flat cable only or a shielded flat cable connected with an innovative connector designed by AXON’

-21, 31, 41 and 51way 0.50mm pitch shielded flat cable with gold plated conductor ends, terminated with connectors compatible with the board-mount FI-R connectors

-Matable with ZIF connectors

-Specific cable shapes for connectors with locking systems available on request.

2、//平面显示连接高速传输（LVDS）：柔性FDC100^®

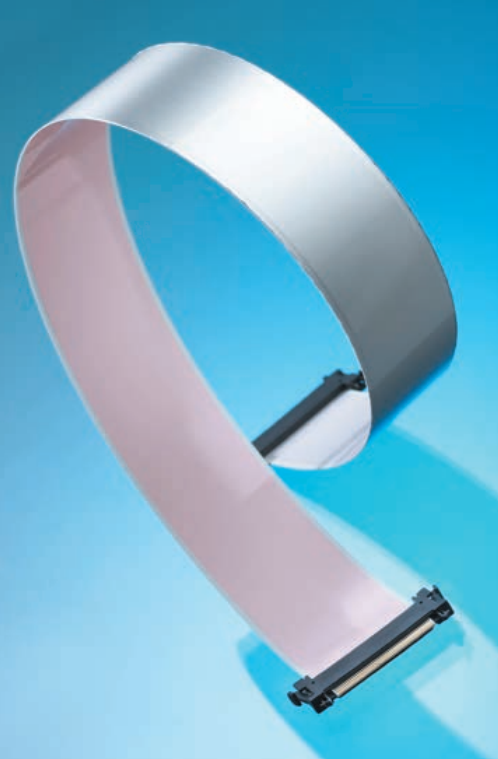

Flat Display Connections for High Speed (LVDS): FDC 100® Flexible version

相对于标准LVDS设计，Axon' 还开发设计了新版柔性LVDS，拥有更好的绝缘特性，更好的弯曲特性，也更易于与客户设备匹配连接。

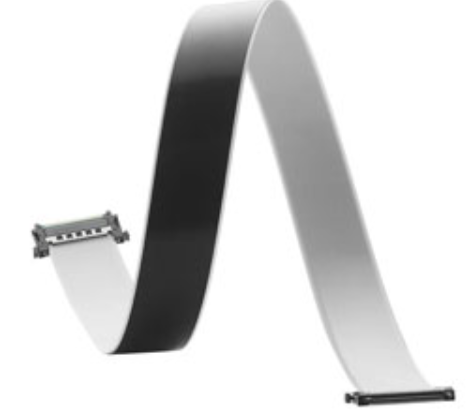

Compared to a standard LVDS design, the flexible version of the FDC 100® provides better insulation, greater flexibility and easier integration into the customer's equipment.

//附加优势:

Additional advantages

-同面连接或者异面连接

-更高耐弯曲性

-Contact area to be on the same side oropposite side

-Higher flexibility

//结构:

Construction

-带屏蔽的扁平电缆或者是组装FI-R连接器的带屏蔽扁平电缆

-41和51针的0.50mm间距的屏蔽扁平电缆，窗口导体采用镀金处理，与板端FI-R连接器兼容插接

- 适用于ZIF连接器

-可根据要求提供适用于各种带有锁定功能的连接器所对应匹配的特定形状的扁平电缆

-Made with a shielded flat cable only or ashielded flat cable connected with an innovative connector designed by AXON’

-41 and 51way 0.50mm pitch shielded flat cable with gold plated conductor ends, terminated with connectors compatible with the board-mount FI-R connectors

-Matable with ZIF connectors

-Specific cable shapes for connectors with locking systems available on request.

3、//应用:

Application

适用于任何市场上需要连接全高清显示器，3d显示器，LED显示器，摄像头，高速数据传输的应用

Connections of full HD displays, 3 Ddisplays, LED displays, cameras, high speed data transfer for any market.
