窄边距柔性扁平电缆：Picoline

  • 2022-06-29

//窄边距柔性扁平电缆

Low Width Flexible Flat Cables

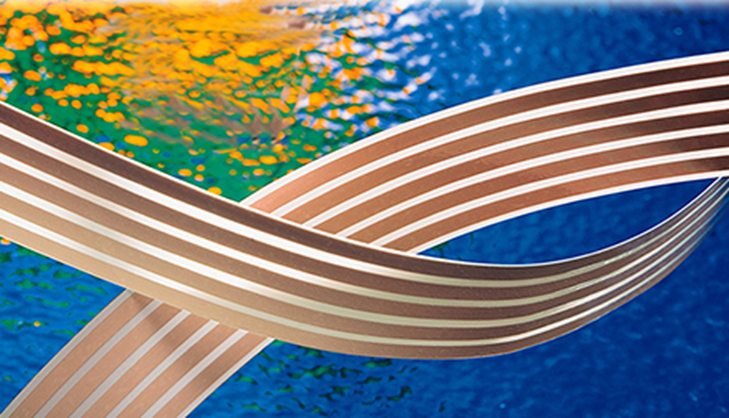

窄边距柔性扁平电缆，Picoline®由扁平铜导体和绝缘聚酯胶带制成。它们是为气囊旋转接头设计的，用于释放驾驶员方向盘下的气囊。使用Axon' 获得专利的独特工艺可降低airbag®系统内电缆产生的噪音。

Low width flexible flat cables, Picoline® are made with flat copper conductors insulated with a polyester tape. They have been designed for airbag rotary connectors used to release the driver’s airbag housed under the steering wheel. The unique process patented by Axon' Cable allows for reducing noise of the cable inside the airbag® system.



//优势

Advantages


-可节省空间：由于采用单层碾压工艺，柔性扁平电缆的宽度非常小
-良好的柔韧性
-光滑的电缆边缘使盒带中的噪音更小。
-低宽度FFC可进行冲压以便于定位。
-Picoline®扁平电缆可以二次成型。
-可定制剥线尺寸及位置。
-Space saving: the width of the flex flat cables is very low due to a single laminating  system
-Flexibility
-Smooth edges of the cable: less noise in the cartridge.
-Low width FFC can be punched to facilitate positioning.
-Picoline® flat cables can be overmoulded.
-Custom stripping.



//结构

Construction


  • 扁铜导体

  • 定制间距

  • 包覆聚酯绝缘带

  • Flat copper conductors

  • Custom pitches

  • Wrapped polyester insulation tape


//应用

Applications


-主要应用于汽车：方向盘控制、车门和顶篷。

-消费电子产品：板到板互连。

-Mainly automotive applications: steering wheel controls, door and headliners.

-Consumer electronics: board-to-board interconnection.
