Axon'同轴电缆的优点

  • 2023-09-11

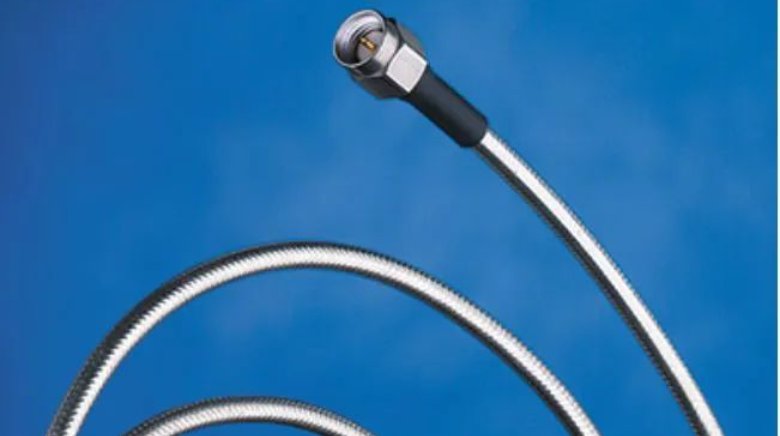

NO.1 同轴电缆的优点与应用

同轴电缆的使用扩展到信号具有最小失真和衰减，或消除外部干扰起主导作用的每一种应用。


The use of coaxial cables extends to every application in which a signal must have a minimum distortion and attenuation or where elimination of external interference plays a leading part.


同轴电缆的使用有助于防止双线产生的许多问题：由电介质分隔的同轴电缆（中心导体和屏蔽）的双导体结构防止了外部干扰的接收，同时也防止了电磁波的损失。
不同类型的同轴电缆由所用材料（导体和电介质）、外径、特性阻抗、电容、衰减和频率范围决定。
最广泛使用的同轴电缆是根据美国标准MIL-DTL-17、RG（政府无线电频率）作为参考和法国标准NF-C93550、KX参考的同轴电缆。
The use of a coaxial cable helps to prevent many of the problems created by bifilary wires : the twin conductor construction of coaxials (central conductor and shield) separated by a dielectric prevents the reception of outside interference, and at the same time, the loss of the electromagnetic wave.
Different types of coaxials are determined by the materials employed (conductors and dielectrics), the outer diameter, characteristic impedance, the capacitance, the attenuation and the frequency range.
The most widely used coaxial cables are those according to the American norm MIL-DTL-17, the RG (Radio Frequency Government) references and the French norm NF-C 93550, KX references.






NO.2 设计

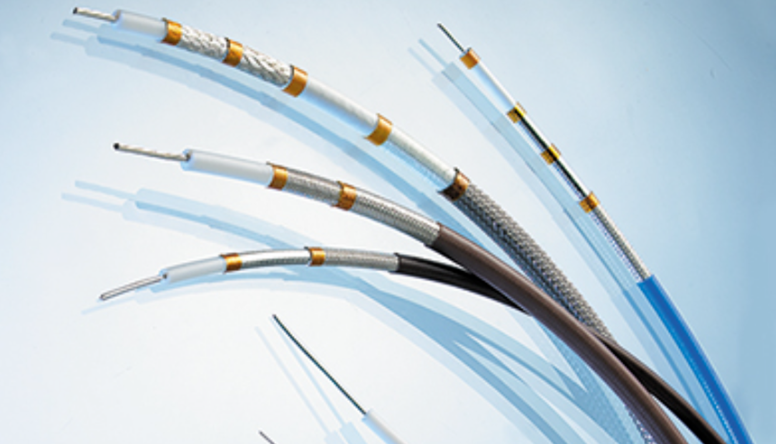

Axon'同轴电缆可由以下材料组成：

Axon' coaxial cables can be composed of the following materials :



NO.3 专利--CELLOFLON®

对于小型、柔性、高性能同轴电缆，Axon'已获得CELLOFLON®（发泡PTFE）专利。这种材料具有80%的孔隙率、0.42的密度和1.18的介电常数（实心PTFE：密度=2.2-介电常数=2.1）。CELLOFLON®的使用有助于制造更轻、更小、更灵活、具有更好电气特性的电缆。由于介电常数越低，损耗越少，截止频率和传播速度越高。

For small, flexible, high performance coaxial cables Axon' has taken out a patent on CELLOFLON® (porous PTFE). This material presents an 80% porosity, a density of 0.42 and a dielectric constant of 1.18 (solid PTFE : density = 2.2 - dielectric constant = 2.1). The use of CELLOFLON® helps to manufacture lighter, smaller, more flexible cables with better electrical characteristics. As the dielectric constant will be lower, there will be fewer losses, and the cut-off frequency and the velocity of propagation will be higher.
