AXOWAVE——柔性低损耗微组件

  • 2023-08-28

//AXOWAVE——柔性低损耗微组件

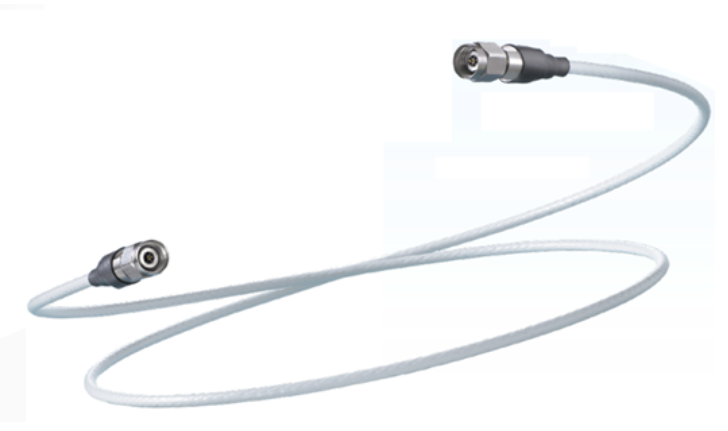

AXOWAVE——Flexible Low Loss Micro Assemblies

-由于CELLOFLON®电介质的使用，制造可用于高频（高达50 GHz）的非常低损耗微波组件变得可能（例如，AXOWAVE 8N:Φ8.0 mm，18 GHz时α≤0.80 dB）。

-这些组件端接SMA、N、TNC型或公制连接器，具体取决于电缆类型。

AXOWAVE数据表显示了整个标准产品系列的详细特征。任何特殊要求都可以研究。

- The use of CELLOFLON® dielectrics makes it possible to manufacture very low loss microwave assemblies (e.g. AXOWAVE 8N: Φ8.0 mm, α ≤ 0.80 dB at 18 GHz) which can be used at high frequencies (up to 50 GHz).

- These assemblies are terminated with SMA, N, TNC type or metric connectors depending on the type of cable.

AXOWAVE datasheets show the detailed characteristics of the whole standard product range. Any special request can be studied.




AxowaveTM系列是一系列直径从3.15毫米到20毫米的柔性低损耗微波同轴电缆组件。

它们采用FEP（氟乙烯-丙烯）或PU（聚氨酯）外层护套进行绝缘。

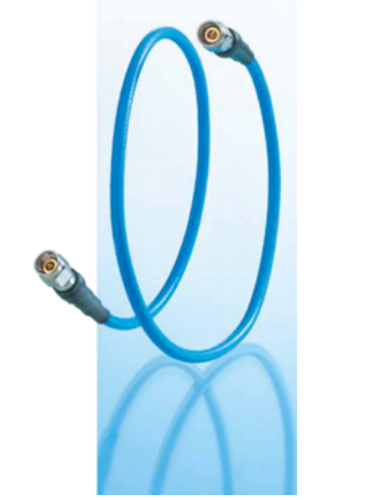

The AxowaveTM family is a complete range of flexible low loss microwave coaxial assemblies with diameters from 3.15 mm to 20 mm.

They are insulated with FEP (Fluorethylene propylene) or PU (Polyurethane) outer jackets.



//优点

Advantages

>额定温度-55°C至+125°C或-40°C至+95°C，具体取决于外部护套。

>额定频率0至50 GHz（取决于型号和连接器）。

>优化的插入损耗高达50 GHz（取决于版本）。

>1 GHz时屏蔽效率>100 dB。

>灵活的版本。

>可以将Axowave同轴组件集成到混合线束中（包含诸如功率和信号的附加功能）。

> Rated temperature -55°C to +125°C or -40°C to +95°C depending on the outer jacket.

> Rated frequency 0 to 50 GHz (depending on the version and connectors).

> Optimized insertion loss up to 50 GHz (depending on the version).

> Shielding efficiency > 100 dB at 1 GHz.

> Flexible version.

> Possible to integrate Axowave coaxial assemblies into hybrid harnesses (containing

additional functions such as power and signal).



//结构

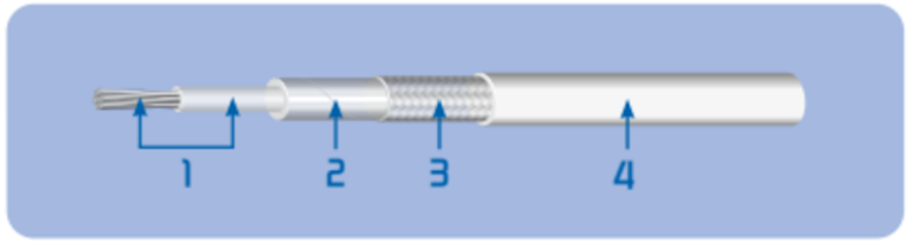

Construction

1.线芯：

内部导体：镀银铜，实心和绞合。

绝缘：Celloflon®发泡聚四氟乙烯。

2.绕包屏蔽：镀银铜。

3.编织屏蔽：镀银铜。

4.外护套：FEP、PU、ETFE。

1. CORE :

Inner conductor: silver plated copper, solid and stranded.

Dielectric: Celloflon® expanded PTFE.

2. Taped shield: silver plated copper.

3. Braided shield: silver plated copper.

4. Outer jacket: FEP, PU, ETFE.



//应用

Applications

AxowaveTM微波同轴电缆组件主要用于测量和设备组件以及天线。在航空电子领域，它们被用于雷达、天线和监视系统。

如需户外应用，请联系我们。

AxowaveTM microwave coaxial assemblies are mainly used as measurement and equipment assemblies, as well as for antennae. In the field of avionics, they are used for radars, antennae and surveillance systems.

For outdoor applications, please contact us.
