Axon' 高达40 Gb/s 的高数据速率链接：传输速度更快

  • 2023-03-06

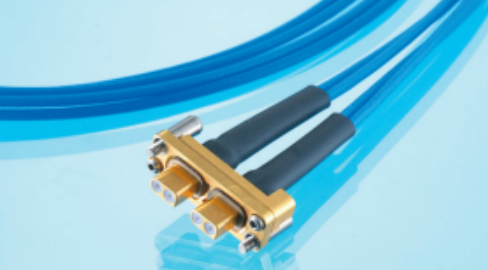

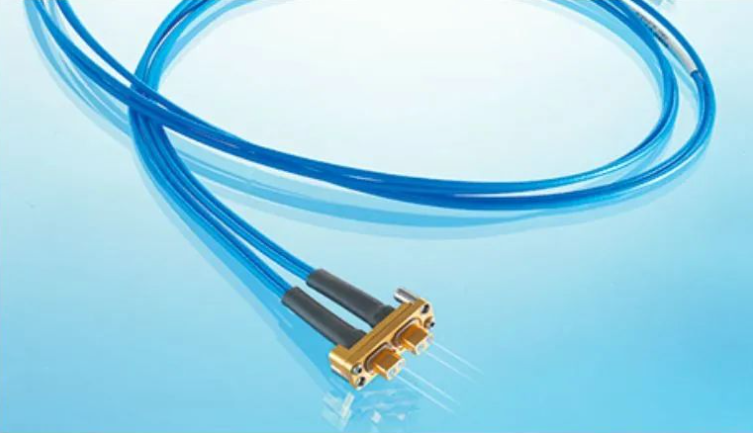

AXOMACH™是一系列高数据速率互连器件，专为传输高达 40 Gb/s 的高数据速率而设计。例如，它们旨在实现卫星中高清图像传感器的互连。它们由低损耗微波同轴电缆制成，可以使用Axon' 设计的不同基于Micro-D的连接器端接。

AXOMACH™ is a range of high data rate interconnects designed for the transmission of high data rates up to 40 Gb/s. They are aimed, for example, at the interconnection of high definition imagery sensors in satellites. Made with low loss microwave coaxial cables, they can be terminated with different Micro-D based connectors designed by Axon’ Cable.


Axon'还提供与空间光纤标准兼容的AXOMACH™互连器件。

Axon' also offers AXOMACH™ interconnects compatible with the SpaceFibre standard.



//优势

Advantages

高数据传输速率：每通道高达 10 Gb/s

信号完整性

低失配

低串扰

优异的电磁兼容性性能

节省空间：对于相同数量的端子，宽度约为标准 SMA 连接器的一半。

Transmission of high data rates: up to 10 Gb/s per channel

Signal integrity

Low mismatching

Low crosstalk

Excellent EMC performance

Space saving: about half the width of a standard SMA connector for the same number of contacts.



//结构

Construction

微波同轴电缆Axowave™ 2.4 （AWG2401） 或Quasi-flex™人手成型半刚性替代品。

端接不同种类的基于 Micro-D 的连接器：

电缆安装连接器

面板安装连接器

贴片连接器

转换连接器

SMA 面板安装连接器

Microwave coaxial cable Axowave™ 2.4 (AWG2401) or Quasi-flex™ hand-formable semi-rigid substitute.

Terminated with different kinds of Micro-D based connectors:

Cable mount connector

Panel mount connector

SMD connector

Saver connector

SMA panel mount connector


//应用

Applications

航天器中高清图像传感器的互连，包括用于科学任务的卫星或气象卫星。

Interconnection of high definition imagery sensors in spacecraft including satellites for scientific mission or meteorological satellites.

适用于太空SpaceFiber应用

Suitable for SpaceFiber applications

主要用于需要TLK2711芯片的应用，该芯片是WinardLink多千兆位收发器系列的成员，这些组件旨在用于超高速双向点对点数据传输系统，每路（基带）高达10Gb/s。

Mainly used for applications requiring TLK2711 chip which is member of the WizardLink multigibabit transceiver family These components are intended for use in ultrahigh-speed bidirectional point-to-point data transmission systems up to 10Gb/s per way (Baseband).
