//带圆形引脚的扁平电缆

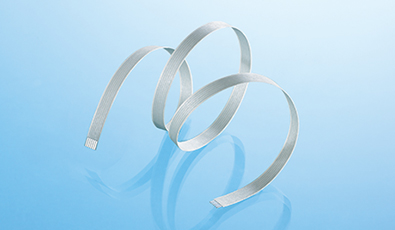

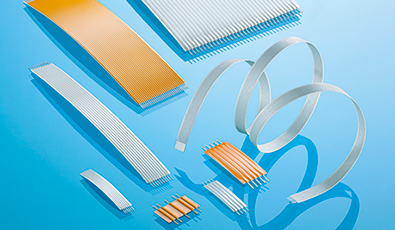

Flat Cables with Round Pins

Axostrip^® 是一系列圆形引脚的扁平电缆（RFC），可以焊接或插入以实现板对板互连。这些带圆形引脚的扁平柔性电缆由镀锡铜线制成，并用聚酯，聚酰亚胺或芳纶胶带绝缘。Axostrip^® 的圆形-扁平-圆形的扁平电缆形状技术具有很高的抗振动和抗弯曲性。提供多种间距，包括 1.00mm、1.25mm、1.27mm、1.905mm、2.00mm、2.54mm 和 5.08mm 间距，安装简单快捷。

Axostrip^® is a range of Round-end Flat Cables (RFC) which can be soldered or inserted to achieve board to board interconnections. These flat flexible cables with round pins are made up of tin plated copper insulated with Polyester, Polyimide or Aramide tapes. The Axostrip^® round-flat-round technology allows for a high resistance to vibration and bending. Available in several pitches including 1.00 mm, 1.25 mm, 1.27mm, 1.905 mm, 2.00 mm, 2.54 mm and 5.08 mm pitches, they are easy and fast to install.

//优势

Advantage

• 高抗弯曲性和抗振动性

• 安装简单快捷

• 电源传输

• 不需要预先剥离电线和切割成一定长度

• 更低的采购成本：圆端扁平电缆与其他组件一起波峰焊

• 优异的柔韧性

• 有两种类型的末端是可能的：

    两端的圆形导体：由于不需要连接器，因此生产成本更低。

    一端是圆形导体，另一端是扁平导体：此可拆卸版本与ZIF连接器兼容。

• High resistance to bending and vibration.

• Easy and fast installation

• Power transmission

• Preparatory wire stripping and cutting to length is not required.

• Lower purchasing costs: the Round-end Flat Cables are wave-soldered with the other components.

• Excellent flexibility.

• 2 types of ends are possible:

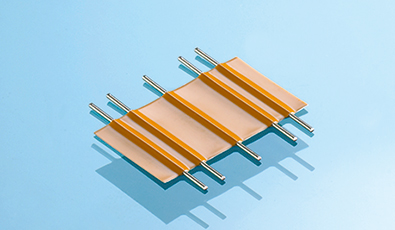

   Round conductors on both ends: lower production costs since no connectors are required.

   Round conductors on one end, flat conductors on the other end: this version which is dismountable is compatible with ZIF connectors.

//结构

Construction

• 镀锡铜导体

• 高品质绝缘聚酯胶带，聚酰亚胺或芳纶胶带

• 间距：1.00毫米，1.25毫米，1.27毫米，1.905毫米，2.00毫米，2.54毫米和5.08毫米

• 最小长度：15毫米

• Tin plated copper conductors.

• High quality insulation polyester tape, polyimide or aramide tape.

• Pitches: 1.00 mm, 1.25 mm, 1.27 mm, 1.905 mm, 2.00 mm, 2.54 mm and 5.08 mm.

• Minimum length: 15 mm

//应用

Applications

Axostrip^® 圆端扁平电缆采用波峰焊印刷电路板，设计用于：

• 电器

• 电信系统

• 工业电子

• 电气设备

• 汽车

Wave-soldered on PCB, Axostrip^® Round-end Flat cables are designed for :

• Electrical appliances.

• Telecommunications systems.

• Industrial electronics.

• Electrical equipment.

• Automotive
